Our Products - Liebert GXT MT+ CX ( Standard Model )

New

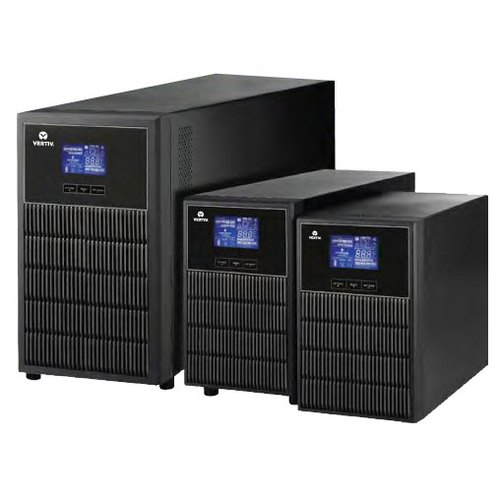

Liebert GXT MT+ CX ( Standard Model )

in stock

₹ 0.00

Vertiv brings together hardware, software, analytics and ongoing services to ensure its customers’ vital applications run continuously, perform optimally and grow with their business needs. Vertiv solves the most important challenges facing today’s data centers, communication networks and commercial and industrial facilities with a portfolio of power, cooling and IT infrastructure solutions and services that extends from the cloud to the edge of the network.

Description Specifications

Data Network: Mid - range , Servers (Windows and Linux), networks
Small Data Center Rooms
Voice Networks: Cellular Sites, Voice Over IP (VOIP), Very small Aperture Terminals (VSAT) PBX And IT-enabled PBX Automation industries
Process Automation , Equipment: Programmable , Logic Controllers (PLS) and Cash Machines ( ATM )

Model		1K	2K	3K
Phase
Capacity		1000 VA / 900 W	2000 VA / 1800 W	3000 VA / 2700 W
Input Parameters
Nominal Voltage		180VAC/160VAC/140VAC/120VAC±5%
Input Voltage Range		195VAC/175VAC/155VAC/135VAC ± 5 %
Frequency Range		40Hz ~ 70 Hz
Power Factor		0.99 @ nominal voltage (input voltage)
Output Parameters
Output Voltage		Output Voltage 208/220/230/240VAC
Voltage Regulation
Frequency Range (Synchronized Range)		47 ~ 53 Hz or 57 ~ 63 Hz (Synchronized Range)
Frequency Range (Batt. Mode)		50 Hz ± 0.5% or 60Hz ±0.5%
Current Crest Ratio		3 : 1
Harmonic Distortion		3 % THD (linear load); 6 % THD (non-linear load)
Transfer Time	AC to DC	Zero
Inverter to Bypass	4 ms (Typical)
Waveform ( Batt. Mode )	Pure Sinewave
Efficiency
To AC Mode		88 %	89 %	90 %
To Battery Mode		83 %	87 %	88 %
Battery Parameters
Long - run Model *	Battery Type	12 V / 9 AH
Numbers	2	4	6
Charging Current ( max )	1.0 A (max.)
Charging Voltage	27.4 VDC ± 1%	54.7 VDC ± 1%	82.1 VDC ± 1%
Indicators
LCD		NA
Alarm
Battery Mode		NA
Low Battery		NA
Overload		NA
Fault		NA
Physical
Long - run Model *	Dimension, DxWxH (mm)	282 × 145 × 220	397 × 145 × 220	421 × 190 × 318
Net Weight (kgs)	9.8	17	27.6
Environment
Humidity		20–90% RH @ 0–40°C (non-condensing)
Noise Level		Less than 45dBA @ 1 Meter
Management
Smart RS-232/USB		Supports Windows® 2000/2003/XP/Vista/2008/7, Linux, Unix and MAC
Optional SNMP		Power management from SNMP manager and web browser
